Bossman Flange CNC drilling and milling machine

FOB Reference Price:Get Latest Price
$6,000.00 - $8,000.00 / Sets | 1 Set/Sets Bossman Flange CNC drilling and milling machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Bossman
Model Number:
BOSM-DT
Type:
Gantry
CNC or Not:
CNC
Voltage:
Customer Requirement
Dimension(L*W*H):
Customizable
Certification:
CE ISO TUV
Warranty:
12 Months, 1 Year
Precision:
High Precision
Function:
Drilling Tapping Milling
Usage:
Metal Parts Machining
Name:
Bossman frange CNC drilling and milling machine
Weight:
SIZE
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
Customizable
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard packing for international shipment ,special high quality material for rust proof. For Bossman frange CNC drilling and milling machine.
Port
Qingdao/Tianjin
Lead Time :
in stock
Product Description

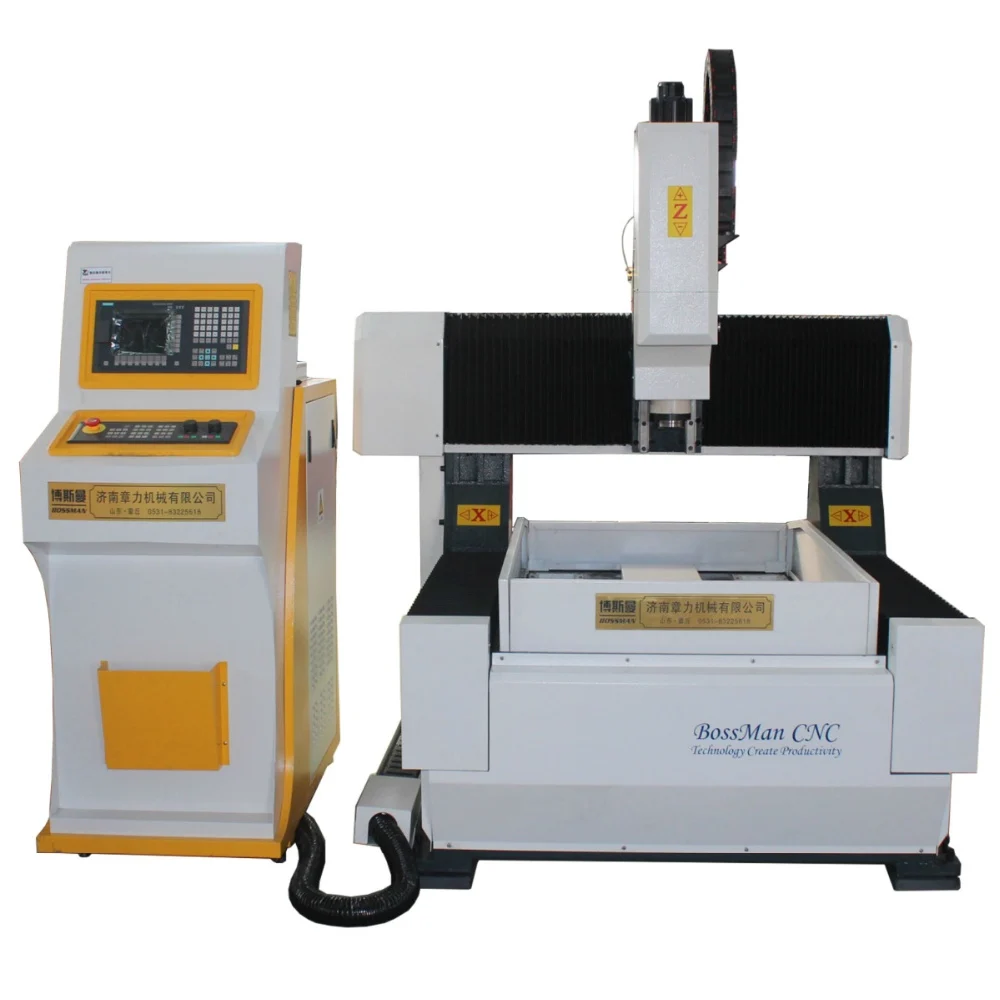

The Bossman vertical CNC drlling and milling machine also named CNC router ,or CNC engraving and milling machine,are mainly used for metal processing,drilling,milling,tapping, with high precision.

And you can choose one or two function only as you need.

Besides steel, it can drill and engrave all metal ,acrylic,PVC,hard plastic,building stone and other hard materials.

Parameter
Bossman CNC Drilling Milling  Machine
Model type
(Worktable moving type)
BOSM—DT6060

BOSM—DT8080
BOSM—DT6090

Effective working Range Size
(X*Y)
600mm*600mm

800mm*800mm

600mm*900mm
Max distance from table to
 spindle end
300mm(As customer need)
Drilling Diameter
0mm—26mm
Spindle motor Power
1.5KW——4KW(HSD /Optional)
Spindle
BT30/BT40
Max rotation speed of Spindle(r/min)
1500/3000/9000/ 24000(stepless speed)
Feed speed Z axis
(drilling spindle)
0-4000mm/min
Movement speed of X/Y axis
9000mm/min
Software
Type 3 /Other software supporting Gcode optional
Positioning precision
≤0.01mm/100mm
AC Voltage
380V/220V( ±10%)
Frequency
50 Hz
Control System
KND/Siemens/Adtech/other
Remarks
All our machine can be customized as special need.


Main Features

1.Indeterminate beam gantry structure, worktable mobile type and three-axis linkage ensure the machine stably running and high-precision positioning.
2.For welding bed base whole heat treated, after the removal of internal stress the machine own good rigidity,durability and hardly deformation.
3.The gantry beam, pillar and worktable are integral casting and heat treated.The T slot on worktable is finishing and layout reasonable to facilitate clamping workpiece.
4.Adopt professional drilling, milling and engraving system and equipped with USB /cable interface and LCD switching in both Chinese and English operation interface. For equipped with digital high-speed handwheel, the operation is more convenient and quick.With preview and review function,the machine can achieve working without dead zone processing
5.Spindle of power head adopts high speed and constant power motorized spindle of driller or precision mechanical spindle, to realize stepless speed control as required by synchronous belt driving.

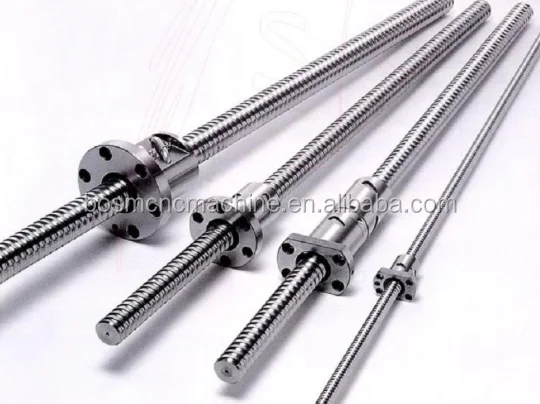

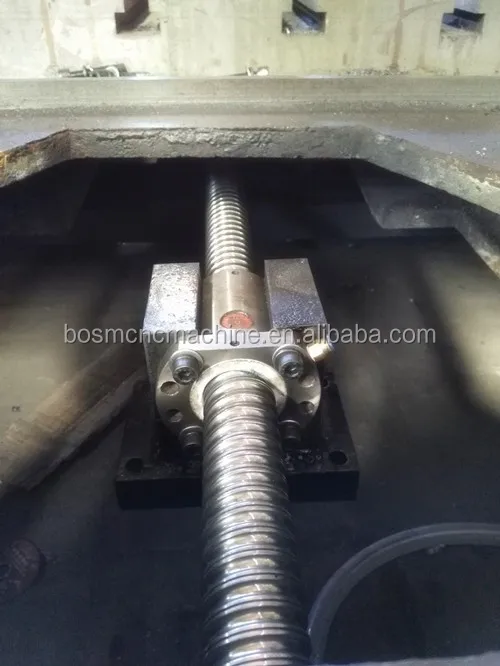

6.All three axis adopt high quality servo motor and precise ball screw to drive.
7.Water-cooled and equipped with cooling liquid supply, recovery and recycle system.
8.Equipped with automatic lubricating device to reduce each motion vice friction and maintain the machine conveniently.
9.Main parts all adopt high-quality products from well-known manufacturers in order to ensure the reliability of machine tool,and can be changed according to the demand of users.

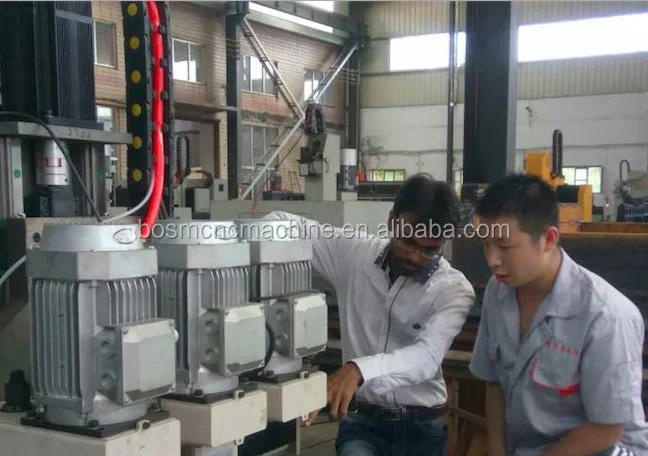

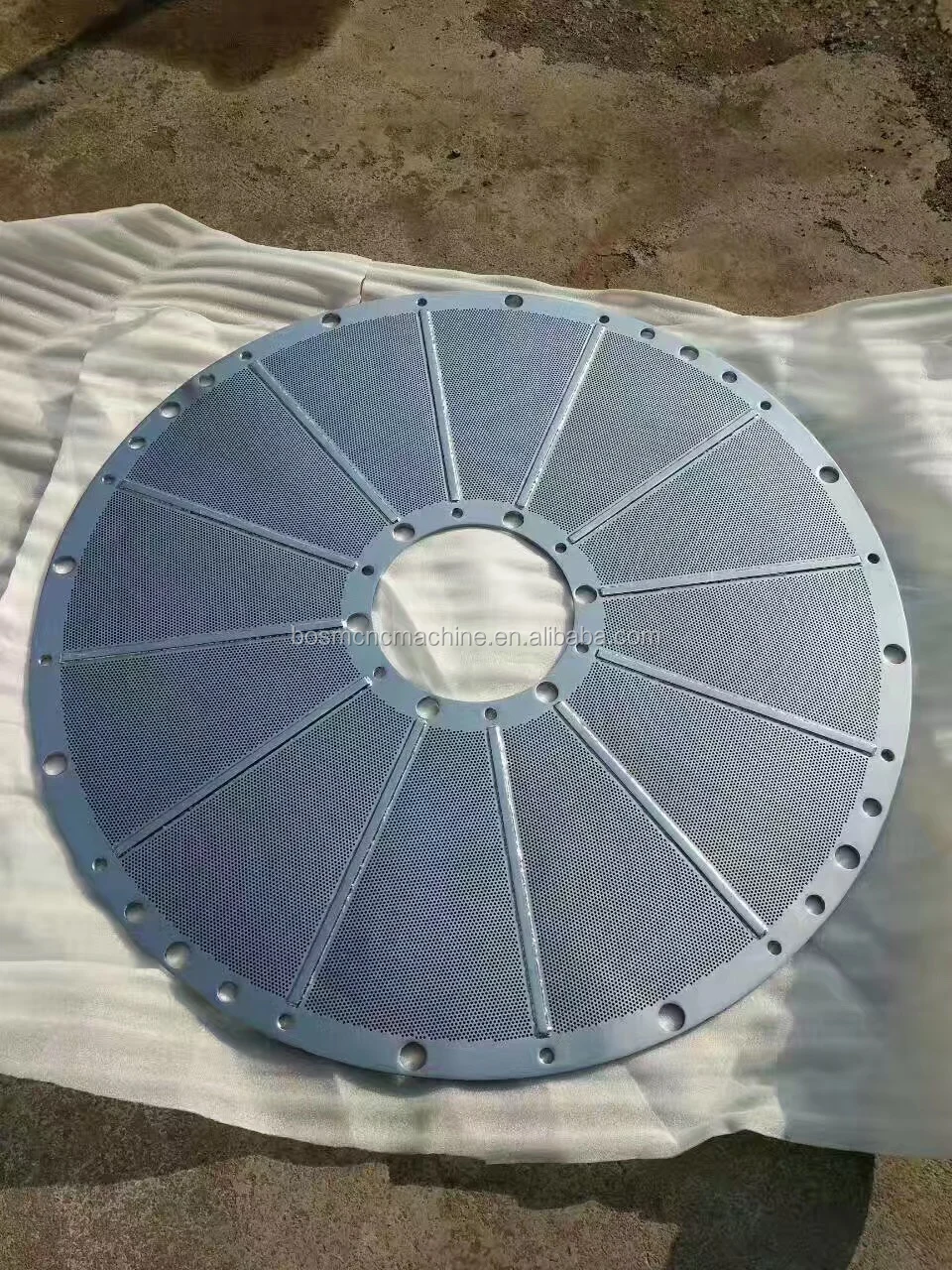

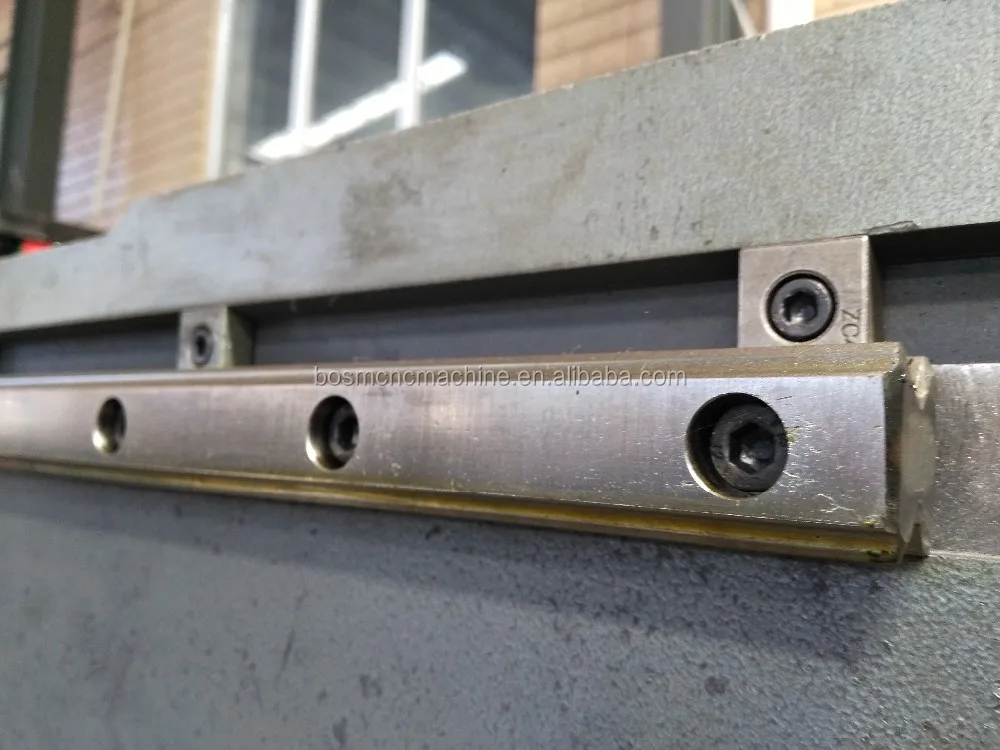

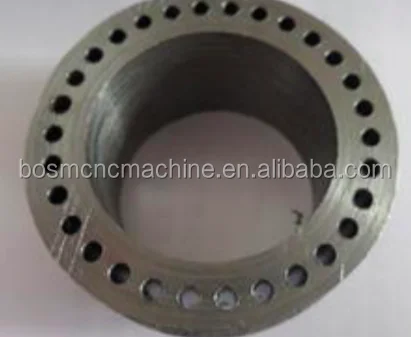

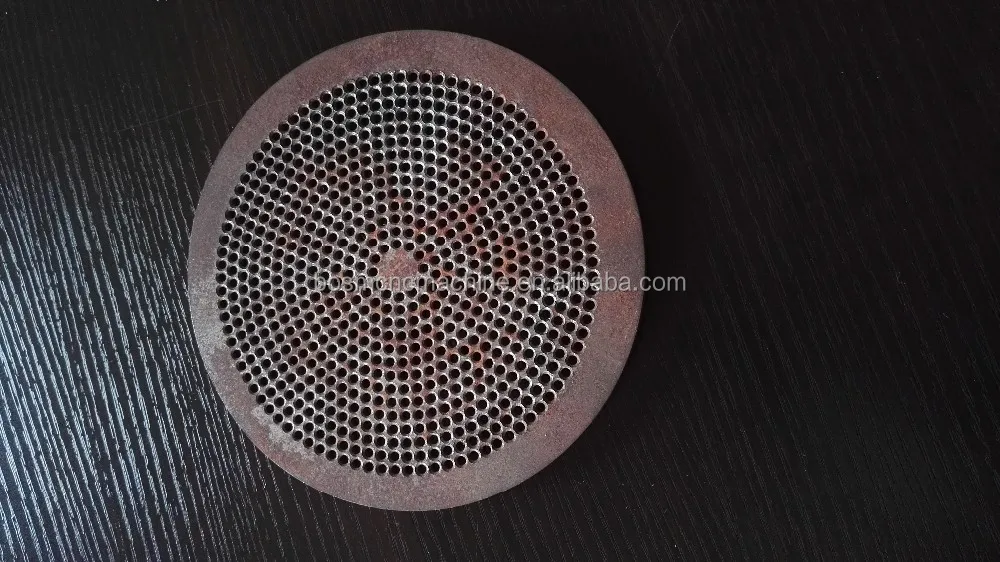

Detailed Images
Packing & Delivery
Our Service

1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.

Customers
FAQ

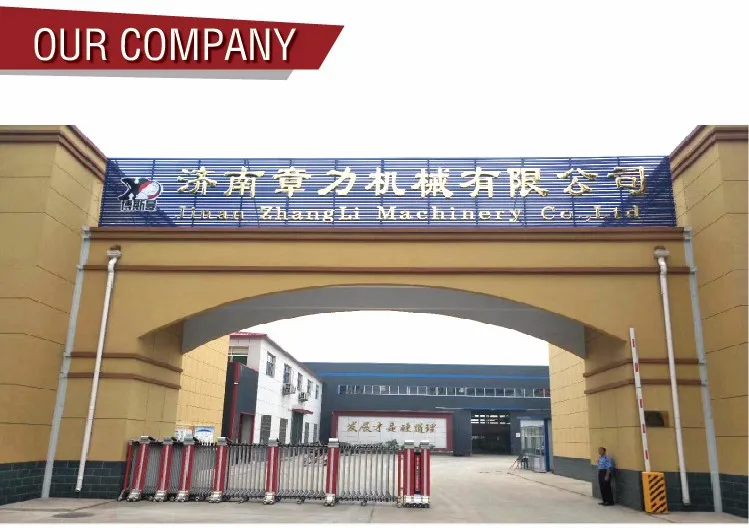

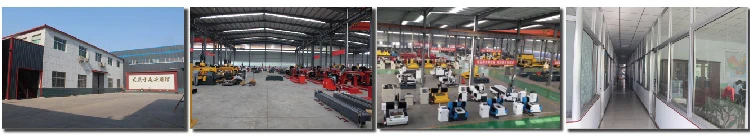

1.Factory or trade company?
We are factory with 20 years experience and 20,000 square meters.
2.When can we arrange shippment?
We usually arrange shippment in 10 -30days after getting deopsit, but customized machines should be more than 30 days,and the honeybee portable cutter could be delivered at once.
2.What you can do if my machines have problems?
a. We can send you free components to you if your machines are in guarantee time.
b. We can send our engineers to repair your machines

c. All machine can be customized as your need.
