Bossman portable CNC plasma cutting machine cutter machinery with strong arm

FOB Reference Price:Get Latest Price
$1,500.00 - $2,300.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Bossman
Model Number:
BOSM-CP1525/1560
Voltage:
220V/380V
Rated Power:
150W-250W
Dimension(L*W*H):
special and customized
Certification:
CE ISO TUV
Color:
Grey
Cutting speed:
0-4000mm/min
Type:
CNC Cutter
Name:
honeybee portable cnc plasma and cutting machine
Cutting thickness:
0-200mm
Product name:
Small portable honeybee Cnc Plasma Cutting Machine
Cutting mode:
Plasma Cutting+ Flame Cutting
Machine type:
Automatic
Cutting material:
Metal Stainless Steel Carbon Steel Aluminum
Weight:
140KG
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case and rust proof material , standard exported package for small cnc plasma and flame cutting machine
Port
Qingdao Port
Lead Time :
Shipped in 5 days after payment
Machine Information

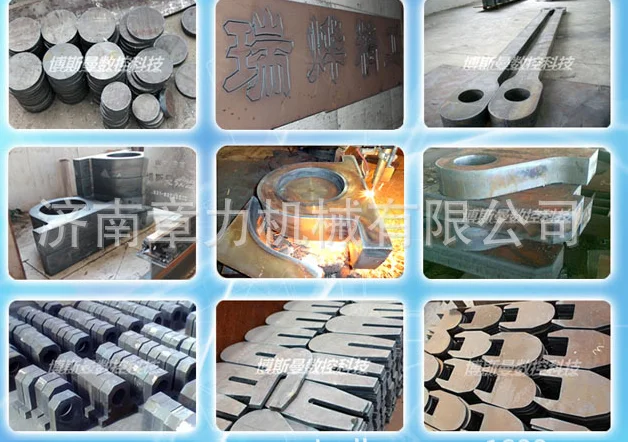

CNC Plasma and Flame Cutting Machine Application


CNC plasma and flame cutting machine is one kind of multi-functional high-efficiency and high –precision cutting   machines, it can cutting vertical and horizontal straight-line, as well as cutting customized freewill geometrical shape.


Bossman Portable CNC Cutting Machine is telescopic arm structure  made up of aluminum alloy materials. Light weight, mobile convenienc,compact structure,run smoothly and high precision cutting. Both flame or plasma cutting function, it’s a kind of cutting equipment with high efficiency and energy saving,with the most economic price.


Specifications for portable plasma and flame cutting machine/mini cutter
Model
Mini cutter 1525
Mini cutter 1530
Mini cutter 1560
Working rangeX*Y(mm)
1500*2500
1500*3000
1500*6000
Max cutting speed
6000mm/min
Cutting thickness(flame)
6mm-200mm
Cutting thickness(plasma)
1mm-30mm(According the plasma power)
Torch height controller
Automatic height controller for flame torch
   Arc voltage height controller for plasma torch
Deposition accuracy
±0.05

Dimension
Host:350mm*320mm*230mm(L*W*H)
3000mm(Guide L)
3500mm(Guide L)
6500mm(Guide L)

Packing dimension
Host:520mmX420mmX310mm(L *W * H)
Guide:3150mm*410mm*320mm

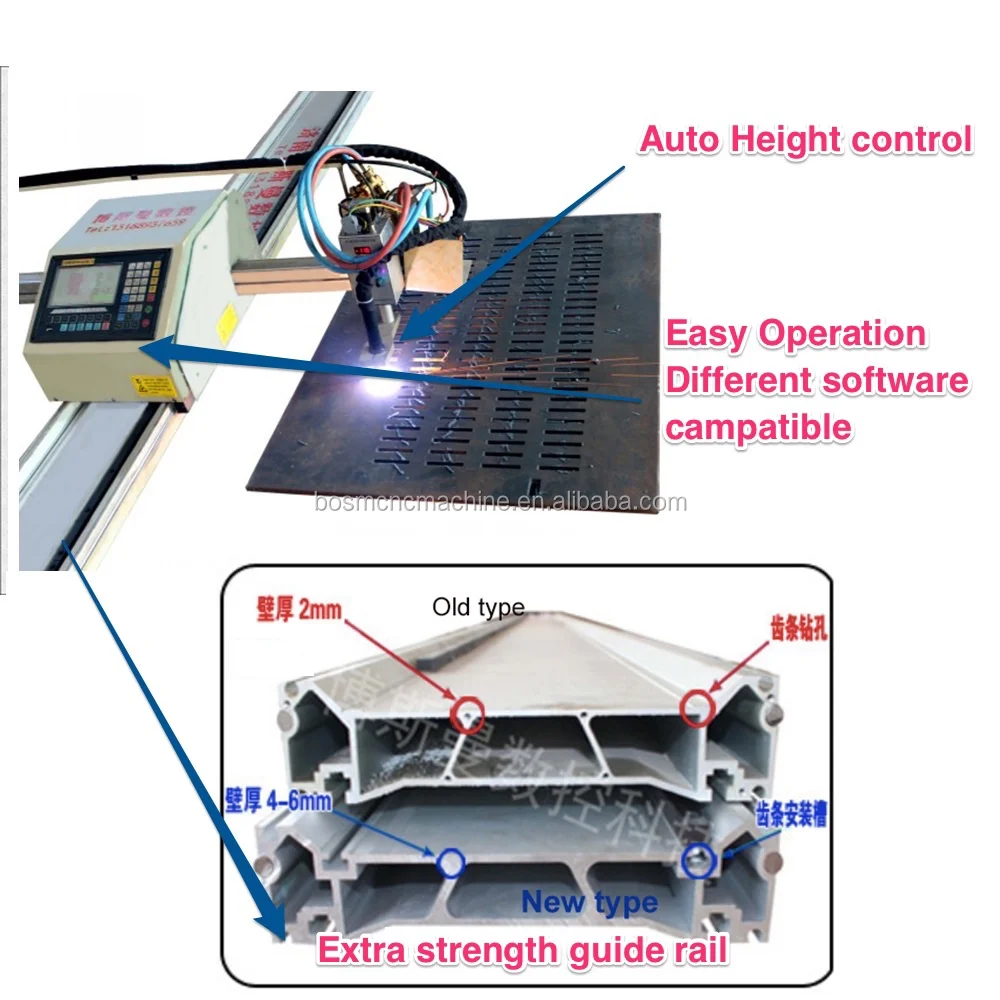

Portable cnc plasma and flame cutting machine features :

1) Simple structure ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Compact design, lightweight and easy to move, can cut by complex 2D shapes and supports oxy-fuel and plasma cutting. it is an ideal equipment for the small and medium-scale enterprises and applies to cut the industrial metallic and nonferrous metal material both indoors and outdoors.

4)The portable CNC cutting machine is equiped with FastCAM programming software,which based on AutoCAD drawing. The software and operation system is easy to learn and can automatically convert the AutoCAD drawings into G-code file, and then transfer G-gode file into CNC cutting machine .
5)Equipped with automatic starfire and automatic height control devices. Overall mobile type can be directly placed on the steel plate  convenient and flexible. Flame cutting model equipped with capacitance automatic height control device. Plasma cutting model equipped with arc voltage torch height controller. It is more effectively control the cutting height and cutting quality, especially suitable for the rough surface sheet.

Quality Control 1

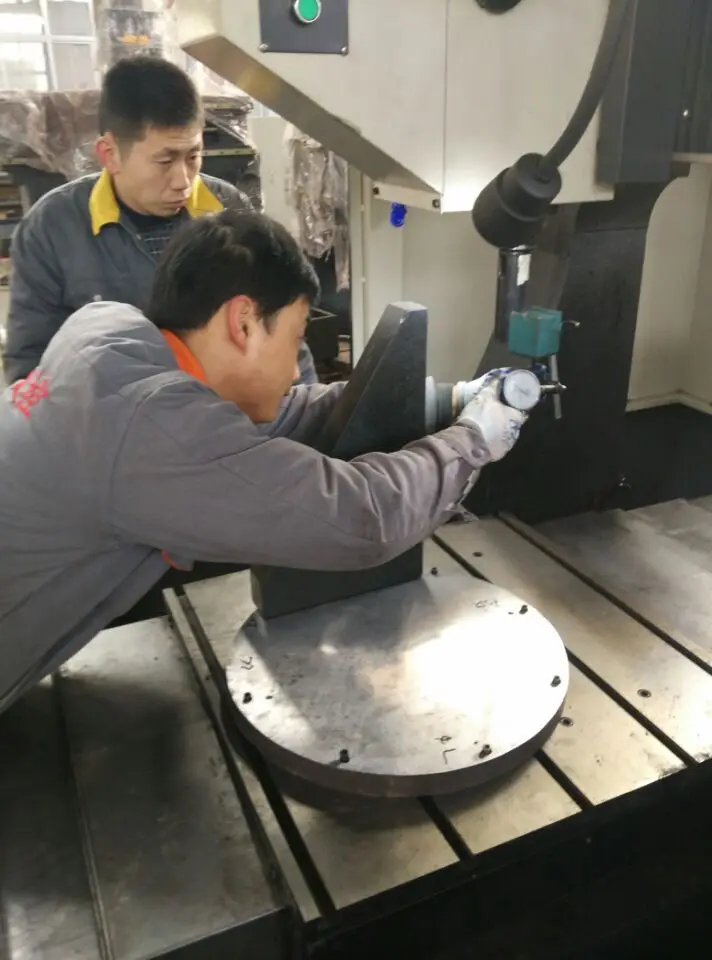

Quality and Process Control for each machine
Quality is life of factory and products.Every machine must be strict tested and inspected by both checker and specialist in every process.
The quality control and inspection department only signed in the report after let the machine idling 24 hours and every ponents is qualified.With us your money and products is in safe.


Packing & Delivery
Our Company
Our Service

1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.

FAQ

1. When can we arrange shippment?
We usually arrange shippment in 10 -30days after getting deopsit, but customized machines should be more than 30 days,and the honeybee portable cutter could be delivered at once.
2.What you can do if my machines have problems?
a. We can send you free components to you if your machines are in guarantee time.
b. We can send our engineers to repair your machines

Our competitive advantages
♣Top quality and factory best price(we have strick quality control system, so the high quality and best price will make great profit for you)

♣Professional service(your design, your brand, your ideas will be made within our cooperation to satisfy your need)
♣Quick response (if we receive your any  requests about our products or company,we will give you reply with 10 hours)
♣Friendly relationship and all machine can be customized as you need.
Our services


1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
