Round metal tube three axis plasma and flame cutting machine

FOB Reference Price:Get Latest Price
$9,800.00 - $12,000.00 / Sets | 1 Set/Sets Round metal tube three axis plasma and flame cutting machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Bossman
Model Number:
BOSM-CR3
Voltage:
220V/380V
Rated Power:
2.2kw
Dimension(L*W*H):
Size
Certification:
CE ISO TUV
Color:
Red/Yellow/Grey/Other
Warranty:
12 Months, 1 Year
Product type:
pipe type cnc plasma cutting machine
Usage:
Metal cutting
Control system:
Start/Starf/Fangling/Other
Precision:
High Precision
Cutting material:
Metal Stainless Steel Carbon Steel Aluminum
Power:
63A/100A/160A/200A
Name:
Round metal tube three axis plasma and flame cutting machine
Weight:
1500kg
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month Round metal tube three axis plasma and flame cutting machine
Packaging & Delivery
Packaging Details
standard exported package for China Bossman brand table type cnc plasma and flame cutting machine factory direct sale.Round metal tube three axis plasma and flame cutting machine
Port
Tianjin Port, Qingdao Port
Lead Time :
Shipped in 7 days after payment
Product Description

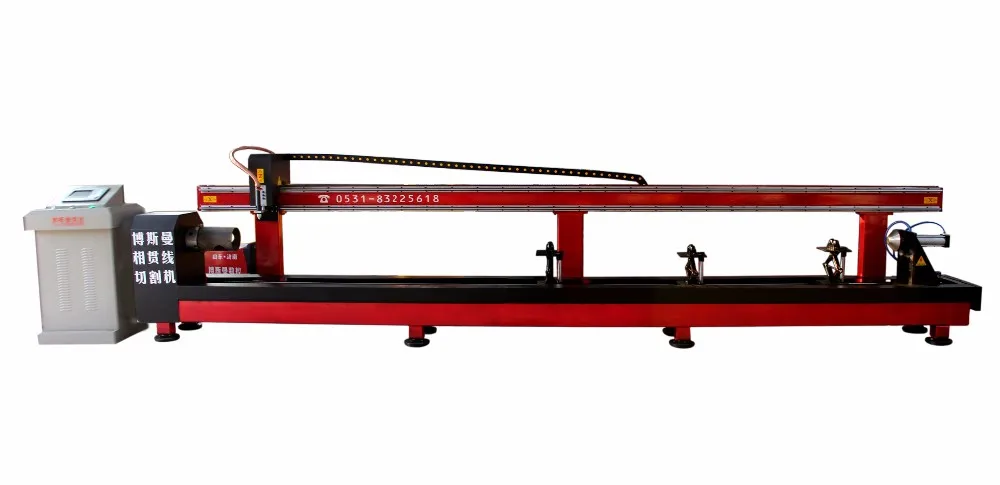

Round metal tube three axis plasma and flame cutting machine

Round metal tube three axis plasma and flame cutting machine is the simple steel pipe right angle cutting off type equipment, mainly used for cutting intersection and pipe end of various piping systems.
It specifically design for round pipe cutting. It can cut carbon steel, stainless and other material are widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.
Suitable Workpiece Material:Low-carbon steel pipe (Copper-nickel pipes, stainless steel pipes need to plasma cutting method)
X axis: Pipe rotation axis, 360 ° freedom of rotation.
Y axis: The torch moving along the pipe axial horizontal axis.
Z axis: Torch up and down moving axis.

Product Details

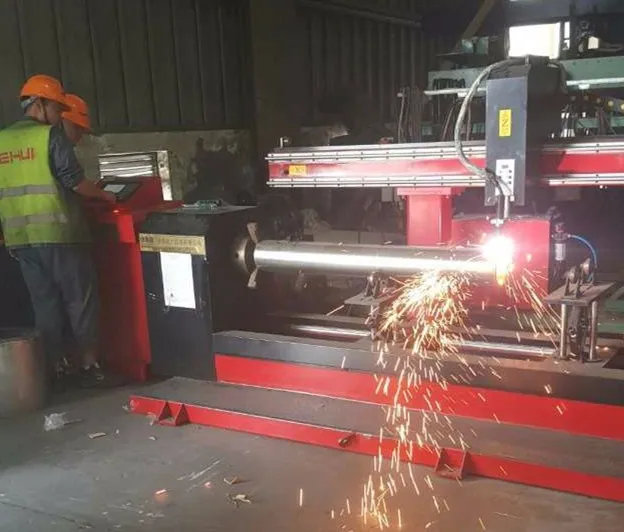

Main Features for Three Axis CNC Round Pipe Cutting Machine

1.According to users' needs,this equipment can be selected to use flame cutting or plasma cutting method, the machine operation is very simple, you just need to input the parameters, such as the diameters of the main pipe and branch pipe, intersection form of the main pipe and branch pipe, crossing angle, cutting speed and so on. After that, it can be cutting automatically,without complicated computation.
Moreover, it can cut cylindrical intersection hole of different directions and diameters on main pipe. Meet the eccentric and non-eccentric vertical and oblique intersection between branch pipe axis and main pipe axis.
With the function as follows:
Once clamping, it can cut many different direction and different diameter of cylindrical intersection hole on main pipe. And once clamping, it can also cut both ends of the branch pipe.

2.This equipment can cut fixed and variable angle bevelling surface according to users' requirments.

It can cut oblique section of the welding elbow (mitre elbow ends) on the round pipe, and it can cut oblique section on the ends of round pipe. with the axis of steel pipe with the axis of steel pipe Angle ≥ 25°, or cutting off round pipe directly. The equipement can also cut branch pipe Intersection end connected with ring main pipe. Cutting square hole, waist type hole, etc on round pipe.

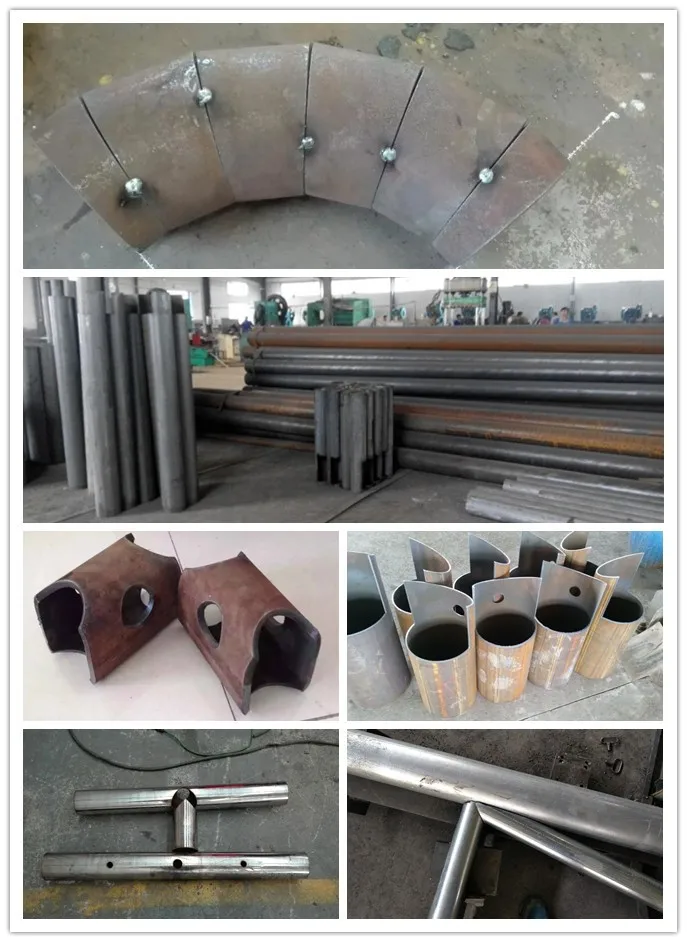

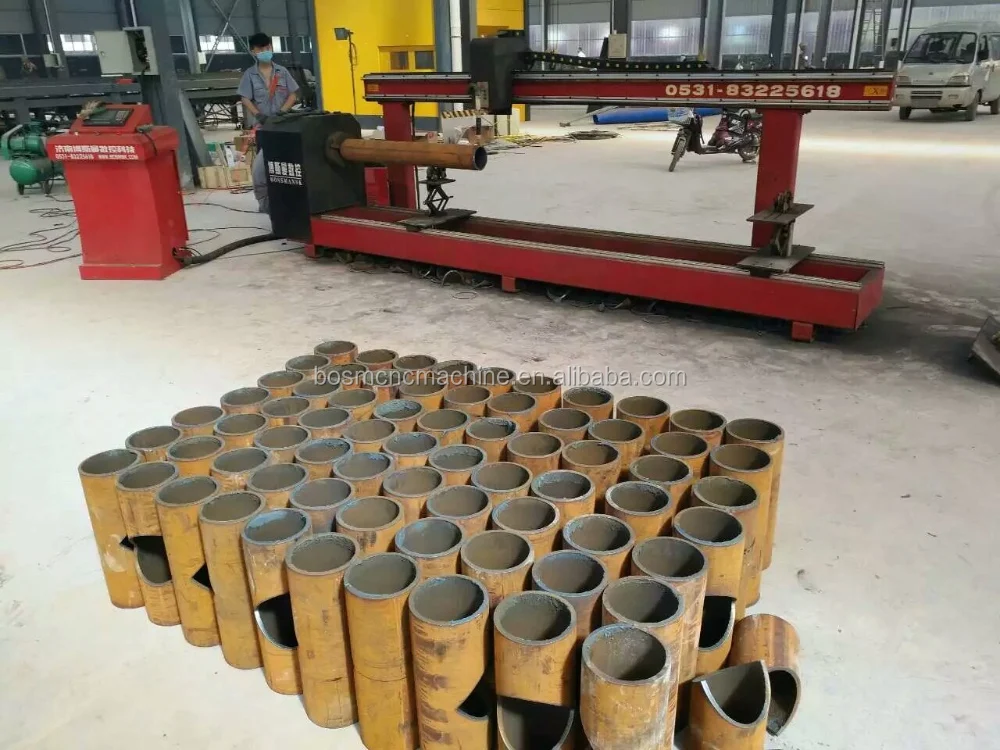

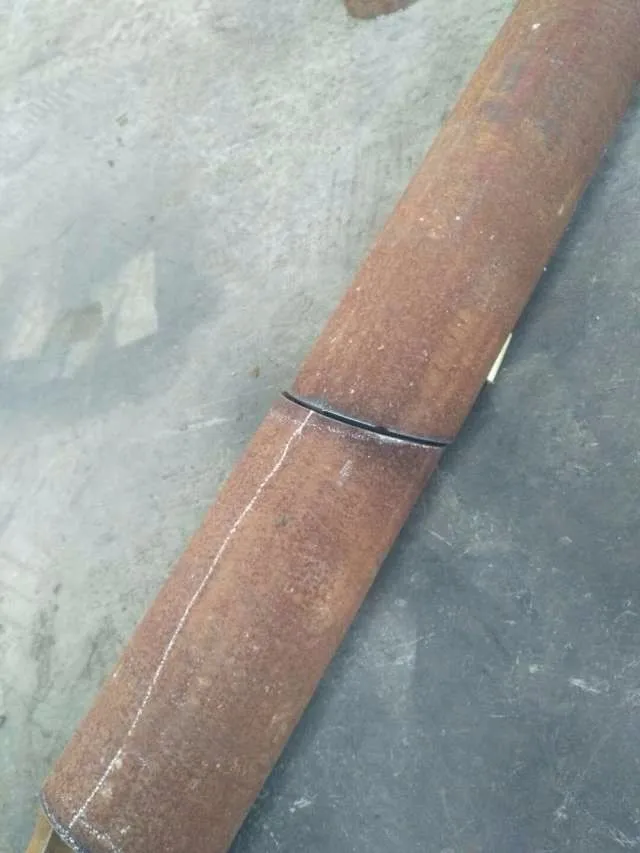

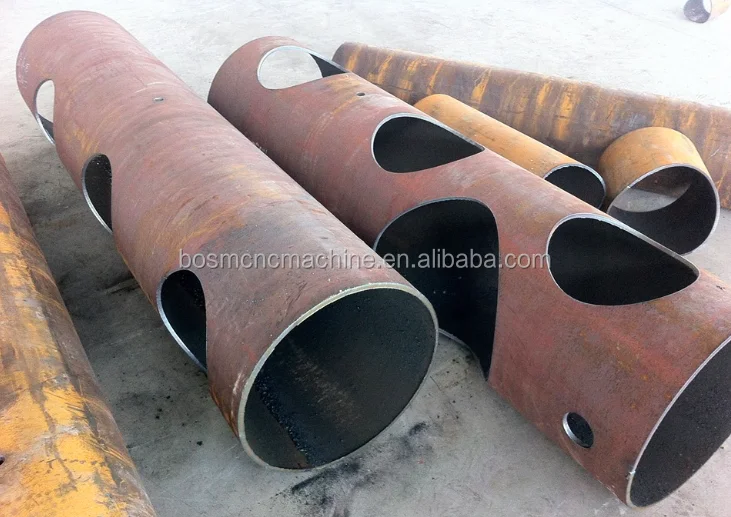

Samples Show
Our Service

1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need

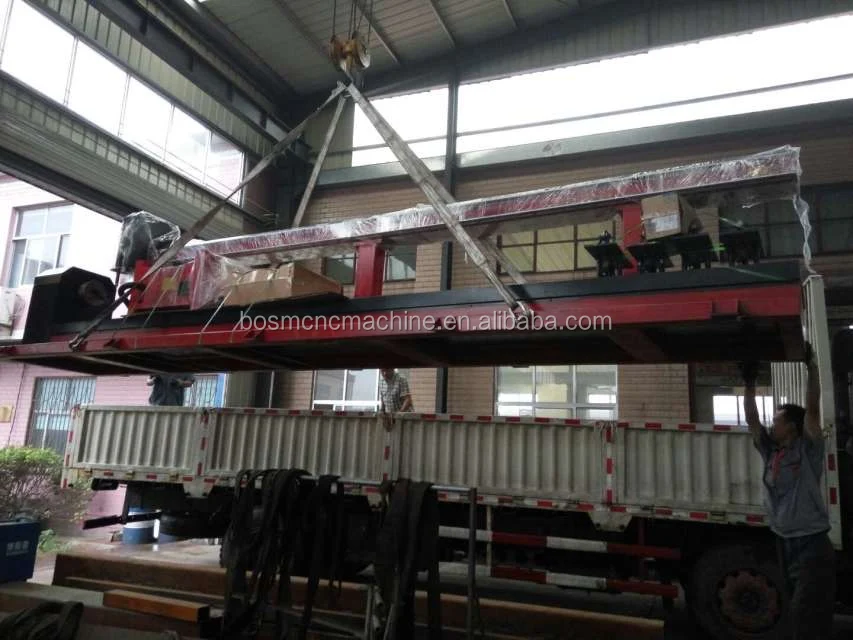

Packing & Delivery
